Integrating BoostSecurity to Power BI

Learn how to seamlessly integrate BoostSecurity data into your Power BI reports using a GraphQL endpoint.

Overview

BoostSecurity offers a powerful GraphQL API that allows you to retrieve valuable security findings directly into your Power BI dashboard. This integration enables you to analyze and visualize security data efficiently whether you are using Power BI Desktop or Power BI online.

Power BI Desktop

Follow these steps to integrate BoostSecurity with Power BI Desktop successfully:

  1. Open Power BI: Launch Power BI on your system.

  2. Get Data from Another Source: Click "Get data from another source" to initiate the data import process.

    Power BI - Get data from another source

  3. Select Python Script: Choose "Python script" from the available options as your data source.

    Power BI - python script

  4. Paste the Code: Paste the provided Python code from here into the designated area.

    Note: Be sure to replace <YOUR API KEY> with the API key you generated as outlined in the steps provided in the Creating an API Key section.

    If Python is not already installed on your system, you can install the necessary packages by running the following commands in your environment:

    pip install pandas
pip install matplotlib
pip3 install requests

  5. Load Data: After pasting the code and making the necessary adjustments, click "OK" to load the data.

    Power BI - load data

  6. Generate Tables and Charts: You can use the loaded data to create tables and charts according to your reporting requirements.

    Power BI - sample visualization

Power BI Online

Follow these steps to integrate BoostSecurity with Power BI Online successfully:

  1. Open Power BI: Access PowerBI Online App

  2. Get Data: In create click on "Get data"

    Get Data

  3. Blank Query: In the "Get Data" modal, select Blank Query.

    Blank Query

  4. Paste the Code: Paste the provided M Query code from here into the designated area.

    Note: Be sure to replace <YOUR API KEY> with the API key you generated as outlined in the steps provided in the Creating an API Key section.

  5. Load Data: After pasting the code and making the necessary adjustments, click "Next" to load the data.

    • If a connection to Boost API wasn't configured you will be asked to configure one.

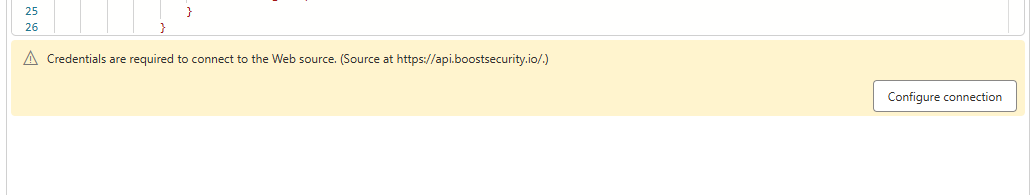

      Configure Connection

    • In the Connect to data source, click the "Connect" button

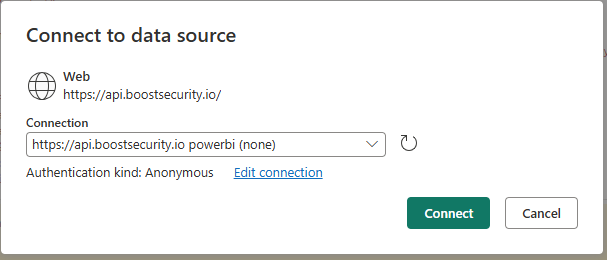

      Connect Data Source

  6. Create Report: One the data is loaded successfully you can create a new report.

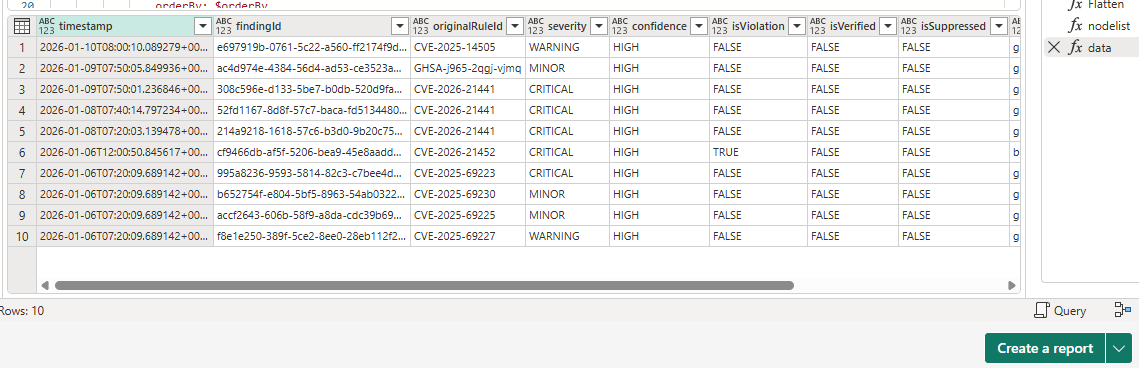

    Create Report

Troubleshooting

  • Wrong API Key.

    If you forgot to update the <API Key> value in the M Query script of entered a wrong value you will get an "Invalied Credentials" errors. To address the issue you MUST edit the script to replace the <API Key> with a valid entry. You MUST NOT edit the connection.

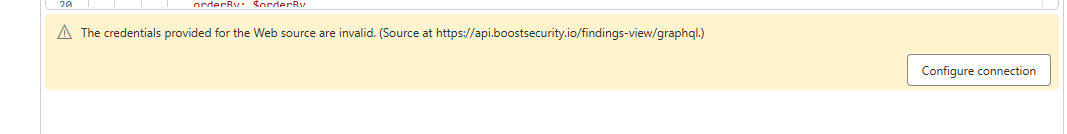

    Invalid Credentials
